Film anu cocog-fase anu dipasang

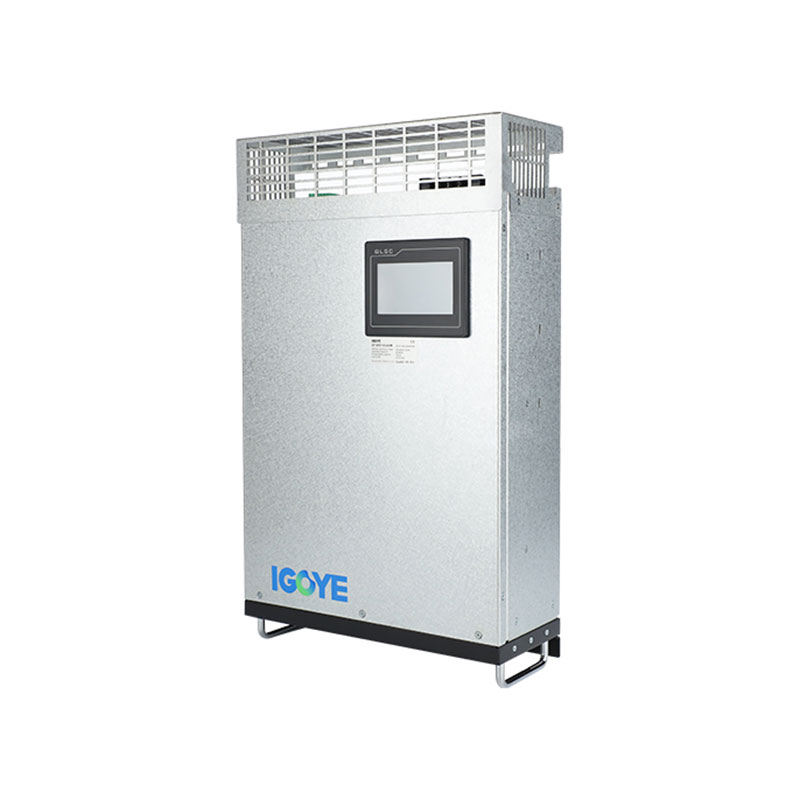

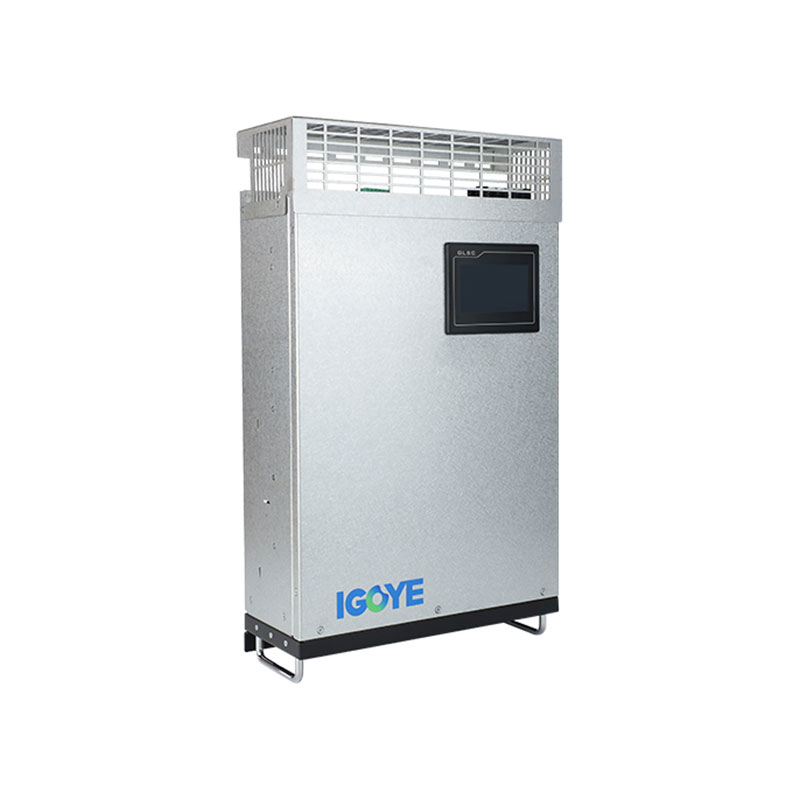

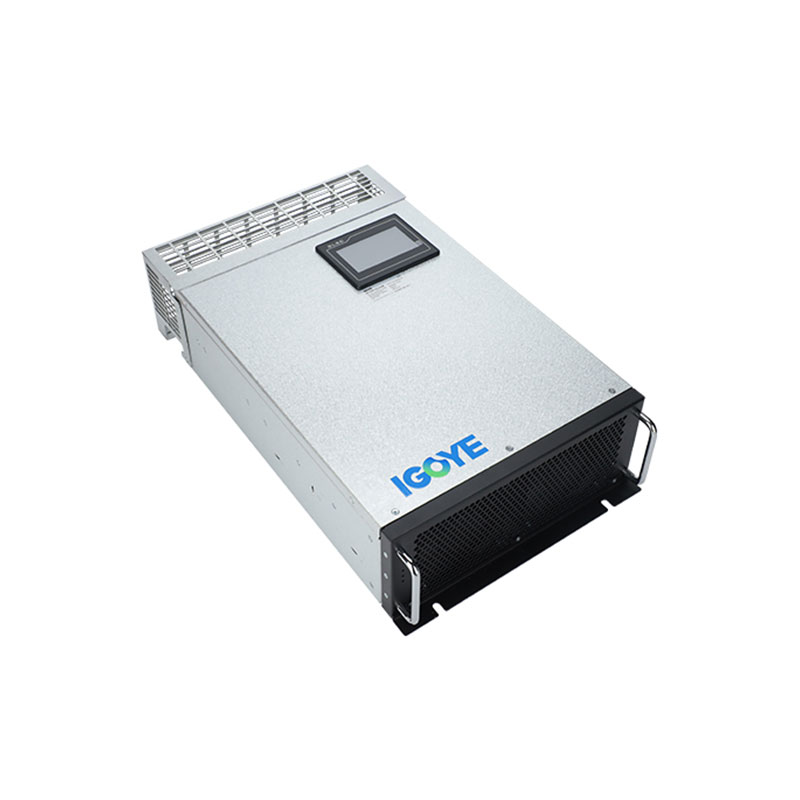

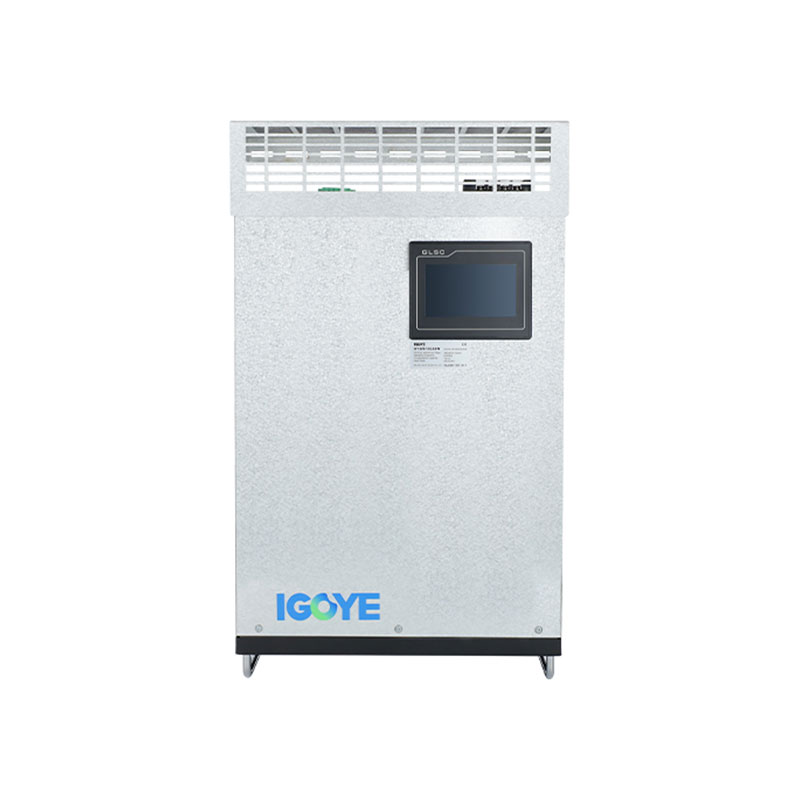

The GY APF Single-phase Wall-mounted Active Harmonic Filter offers a cutting-edge solution for harmonic mitigation in single-phase systems. Utilizing a DSP+CPLD digital control core and three-level topology, it accurately identifies and compensates for harmonic currents up to the 50th order. Its modular design allows for easy parallel connection and maintenance, while independent air ducts ensure stable operation. Ideal for data centers, hospitals, and various industries, the GY APF filter achieves up to 95% harmonic filtering rate and corrects three-phase unbalance.

Model description:

Features:

● Use DSP+CPLD all digital control core, three-level topology technology, advanced harmonic detection algorithm and PWM control strategy to achieve accurate compensation of harmonic current.

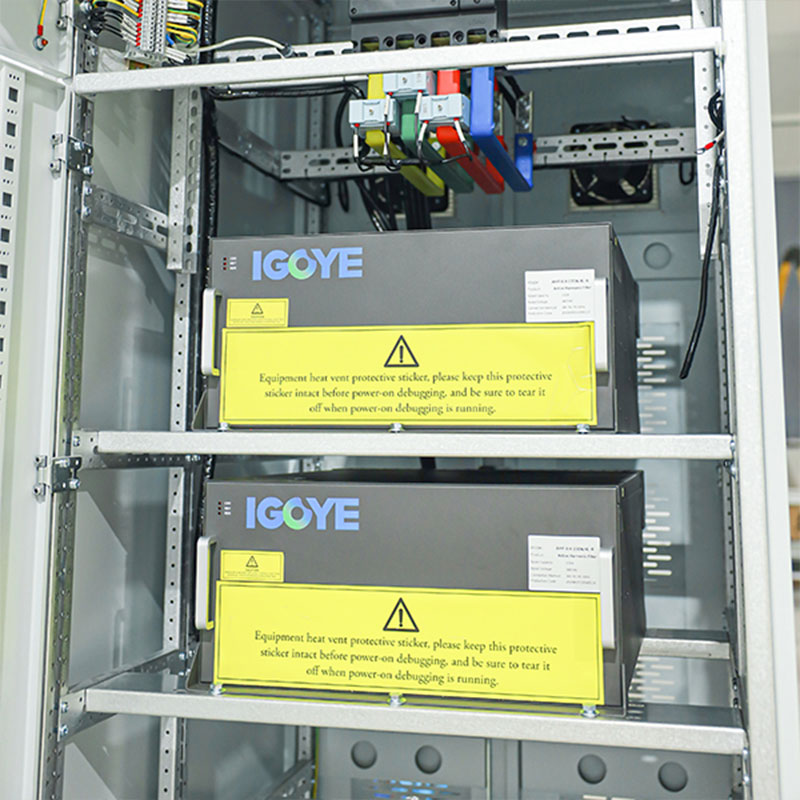

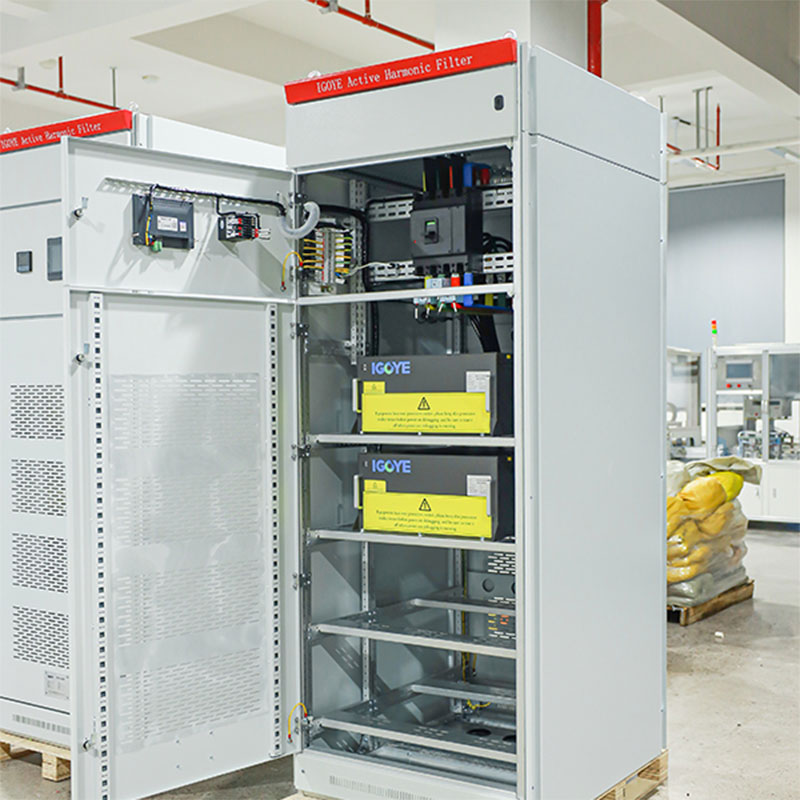

● Adopt modular design, which facilitates parallel connection of multiple modules, takes up little space and is easy to maintain.

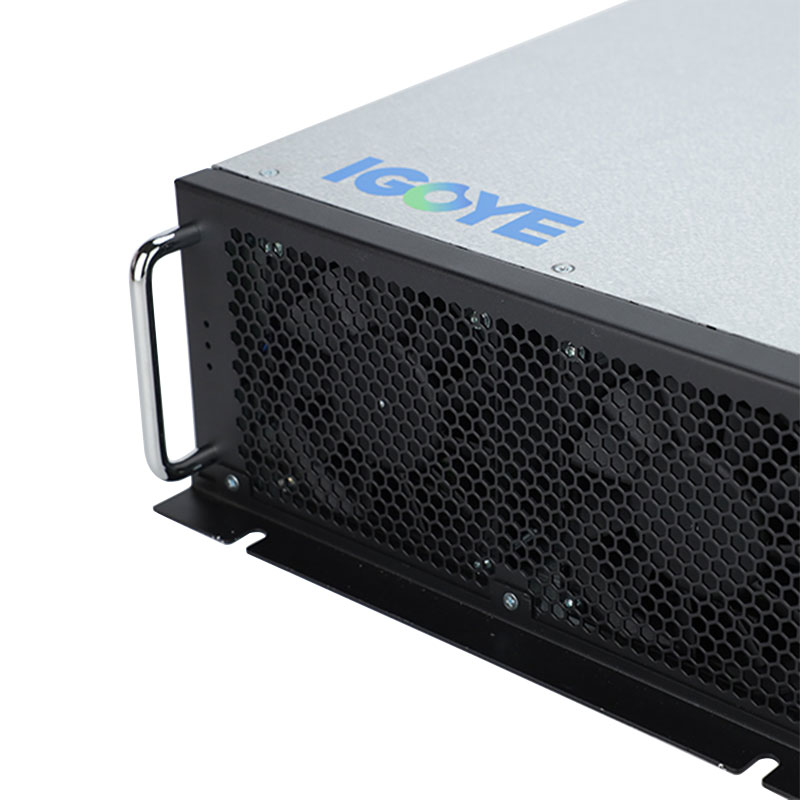

● The structural design of independent air ducts and independent warehouses ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50 harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic current filtering rate can be as high as 95%. Set 100% current limiting output to ensure long-term stable operation of the equipment.

Applications:

This Single-phase Wall-mounted Active Harmonic Filter is suitable for Data centers, hospitals, petrochemical industry, pharmaceutical manufacturing, steel industry, semiconductor manufacturing, light industry and textile industry, etc.

Technical Parameters:

Model& Specification:
